Piping and Accessories in HVAC
In the realm of HVAC (Heating, Ventilation, and Air Conditioning) systems, the selection and installation of piping and accessories are paramount to ensuring effective and efficient operation. This article delves into the intricacies of pipe fittings, insulation, expansion considerations, and more, shedding light on their significance in creating reliable and high-performing HVAC systems.

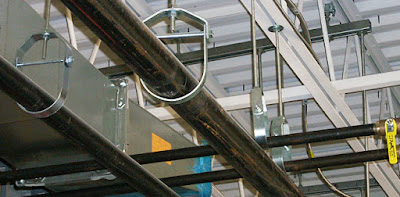

Exploring the Role of Pipe Fittings
Pipe fittings serve as the connective tissue of HVAC piping systems, influencing fluid flow and system performance. Here are key insights into this critical component:
Comprehensive Scope
The realm of pipe fittings encompasses an array of elements:
- Pipes
- Fittings
- Unions and Couplings
- Escutcheons
- Sleeves
- Welding Procedures
- Pre-insulated Pipe
Together, these components create a holistic and efficient piping system.
Upholding Quality Standards
Adhering to quality standards is imperative to ensure the integrity and safety of HVAC piping. Key considerations include:
- Engaging skilled welders registered with the Department of Occupational Safety and Health (DOSH)
- Proper storage and handling of welding consumables in accordance with manufacturer recommendations
- Conducting ultrasonic tests on welded joints to validate weld penetration
- Conforming steel pipes to the latest edition of ASME Standards for Welded Steel Pipe B 31.3
These measures collectively guarantee a piping system that aligns with safety and quality benchmarks.
Meeting Standards: BS 1387 or Equivalent (ASTM A106 SCH.40) & API 5L Gr. B
For superior performance, compliance with industry standards is essential. Consider these standards:
- BS 1387 or Equivalent (ASTM A106 SCH.40): This standard ensures quality for black mild steel pipes, maintaining robustness and durability.
- API 5L Gr. B: This standard signifies the quality of seamless carbon steel pipes, a vital element in the system's functionality.
By adhering to these standards, you guarantee pipes that are in line with established norms.
Selecting Appropriate Pipe Types
The choice of pipes hinges on the specific requirements of HVAC systems. Different services necessitate distinct pipe types, with adherence to relevant standards:
Piping Schedule
For chilled water systems, the selection of pipe is contingent on factors such as nominal size, pressure, and jointing method:
| Service |
Nominal Size |
Pipe |
Fittings |
Jointing Method |
| Chilled Water |
25mm to 50mm |
Black Mild Steel BS 1387 Class C |
Screwed Malleable iron to BS 143 & 1256 |
Screwed |
| Chilled Water |
65mm to 150mm |
Black Mild Steel BS 1387 Class C |
Butt Welding Malleable iron Fitting to BS 143 & 1256 |
Butt Welding or Mechanical Coupling |
| 200mm to 400mm |
Seamless Carbon Steel Pipe to API 5L Gr. B |
Butt Welding Fitting to A234 Gr. WPB |
Butt Welding or Mechanical Coupling |
| 400mm to above |
Electric Welded Carbon Steel Pipe to API 5L Gr. B |
Butt Welding Fitting to A234 Gr. WPB |
Butt Welding or Mechanical Coupling |
These specifications guide the selection of pipes tailored to cooling requirements.
Essentials of Proper Installation
Thoughtful installation practices are pivotal for optimal system performance and longevity:
Steel Pipe Jointing
Jointing methods are tailored to the pipe type:
- Black steel pipes: Joints up to 65 mm diameter are executed through screwed or welded connections. Pipes with a diameter of 80 mm and above are joined through welded or flanged connections.
- Galvanized steel pipes: Joints up to 65 mm diameter are achieved through screwed connections. Pipes with a diameter of 80 mm and above are joined via flanged or mechanical couplings.
These methods ensure secure connections and system integrity.
Flanges & Fitting for Steel Pipe
Flanges and fittings are integral components of steel pipe systems in HVAC applications, adhering to standards such as BS 10 Table 'E' or 'F' and BS 1387 or equivalent (ASTM A106 SCH.40) for quality assurance. Flanges, manufactured from mild steel, ensure secure connections and alignment, complying with safety provisions. Corrugated jointing rings and hexagonal-headed steel bolts, following B.S. 28, guarantee reliable and leak-free connections. Similarly, fittings, whether malleable iron or butt welding types, are chosen to match the working pressure and refrigerant properties. Butt welding fittings, characterized by chamfered edges, offer durability and integrity, while flange connections are meticulously machined for precise alignment.
Incorporating gunmetal or composite flanges conforming to BS 10 Table 'E' or 'F', steel pipe systems prioritize both durability and functionality. These flanges are aligned and flush, coupled with jointing compounds, guaranteeing robust connections. Meanwhile, the selection of fittings is pivotal, with galvanized pipe fittings ensuring compatibility with galvanized pipework and black pipe fittings catering to black steel pipework. Butt welding fittings, especially those at diameter changes, demonstrate meticulous craftsmanship. For copper pipes, capillary or compression joints for smaller sizes, and brazed or flanged connections for larger sizes, are employed. Adhering to these codes and standards, flanges and fittings contribute to the overall reliability, safety, and longevity of HVAC steel pipe systems.
Flanges & Joining for Copper Pipe
Flanges and joining techniques play a pivotal role in ensuring the integrity of copper pipe systems, aligning with esteemed standards like BS 10 Table 'E' or 'F'. Crafted from high-quality materials, these flanges establish robust connections that adhere to stringent safety guidelines. The flush and aligned joints, coupled with recommended jointing compounds, guarantee both reliability and longevity, meeting the demands of HVAC applications.
When it comes to joining copper pipes, adherence to codes and standards remains paramount. Smaller pipes benefit from capillary or compression fittings, a testament to meticulous craftsmanship. Larger pipes, on the other hand, require brazed or flanged connections to ensure a secure and lasting joint. With a focus on precision and durability, copper pipe systems uphold these practices, underscoring the significance of complying with established industry regulations.
Expansion Joints
Expansion joints are critical elements within HVAC piping systems, designed to accommodate thermal expansion and contraction caused by temperature fluctuations. Following industry standards such as BS 1387 or equivalent (ASTM A106 SCH.40) and API 5L Gr. B, these joints help prevent undue stress on the piping and equipment. Guided bellows or telescopic types, approved for specific temperatures and pressures, are recommended. These joints adhere to stringent standards for fire resistance, ensuring safety. Properly positioned expansion joints, equipped with roller guides to facilitate movement, assure the integrity and longevity of the system by mitigating the adverse effects of temperature variations.
Unions and Couplings
Unions and couplings play a pivotal role in the functionality and maintenance of HVAC piping systems. These components provide essential flexibility for equipment removal and system modifications. In line with industry codes and standards, such as BS 1387 or equivalent (ASTM A106 SCH.40) and API 5L Gr. B, unions should be strategically located to facilitate easy dismantling of equipment. Couplings, on the other hand, ensure the adaptability of the system, allowing for expansion and contraction. For instance, the use of insulating dielectric couplings conforming to BS 2871 Table X is recommended to prevent corrosion between dissimilar metals, such as steel and copper, ensuring the longevity of the system. These components are designed to operate at 150% of the minimum working pressure, adhering to safety protocols and maintaining system integrity. By incorporating unions and couplings that adhere to relevant codes and standards, HVAC professionals ensure a robust and serviceable piping system capable of meeting the demands of various applications.
FAQs about Piping and Accessories in HVAC
1. What is HVAC piping?
HVAC piping refers to the network of pipes used in heating, ventilation, and air conditioning (HVAC) systems. These pipes transport fluids like water, refrigerants, and gases, facilitating the transfer of heat or cooling throughout a building.
2. Which pipes are used in HVAC systems?
HVAC systems commonly use a variety of pipes, including copper, steel, stainless steel, and plastic pipes. The choice of pipe material depends on factors like the type of fluid being transported, temperature requirements, and the specific HVAC application.
3. Is piping part of HVAC?
Yes, piping is a crucial component of HVAC systems. It helps circulate the necessary fluids to distribute heat or cooling, ensuring the effective operation of heating, ventilation, and air conditioning systems.
4. What are piping and accessories in HVAC systems?
Piping and accessories in HVAC systems include not only the pipes themselves but also various components like valves, fittings, connectors, pumps, and insulation materials. These accessories are essential for controlling fluid flow, maintaining system efficiency, and preventing heat loss.
5. What are some materials used in HVAC systems?
Common materials used in HVAC systems include copper pipes for refrigerant lines, steel pipes for heating systems, and plastic pipes for drainage. Additionally, insulation materials like foam or fiberglass help conserve energy by preventing heat transfer.
6. What are chilled water piping specifications?
Chilled water piping specifications outline the requirements for pipes used to transport cold water in HVAC systems. These specifications may include pipe material, sizing, insulation, pressure ratings, and installation guidelines to ensure proper functioning and efficiency.
7. What is the recommended chilled water pipe material according to ASHRAE?
According to the American Society of Heating, Refrigerating and Air Conditioning Engineers (ASHRAE), common chilled water pipe materials include steel, copper, and various types of plastic. The choice depends on factors such as cost, durability, and compatibility with the specific HVAC application.
8. Can you provide an HVAC piping diagram?
An HVAC piping diagram illustrates the layout and connections of pipes in an HVAC system. The diagram helps visualize how fluids flow through the system, including components like pumps, valves, and heat exchangers.
9. Where can I find an HVAC materials list?
You can typically find an HVAC materials list from HVAC suppliers, manufacturers, or specialized resources. This list includes all the materials and components required for HVAC installations, repairs, or maintenance.
10. Is there an HVAC pipe size chart?
Yes, HVAC pipe size charts provide information on recommended pipe sizes based on factors like fluid flow rate, pressure drop, and pipe material. These charts help HVAC professionals select appropriate pipe sizes to ensure efficient system performance.
11. What are the types of piping systems in HVAC?
HVAC systems can employ various types of piping systems, including hydronic systems for water-based heating and cooling, refrigerant piping for air conditioning, and steam piping for heating. Each type of system has specific requirements and considerations.
Concluding Thoughts
Piping and accessories constitute the backbone of HVAC systems, guaranteeing efficient fluid transportation and system performance. By abiding by quality standards, employing suitable jointing techniques, prioritizing insulation practices, and accounting for expansion, HVAC professionals craft dependable and energy-efficient systems tailored to diverse applications.
For detailed insights and guidelines, consult pertinent industry standards and manufacturer recommendations.
Note: This article offers a general overview and should not replace specific engineering guidelines or recommendations provided by HVAC experts and manufacturers.
